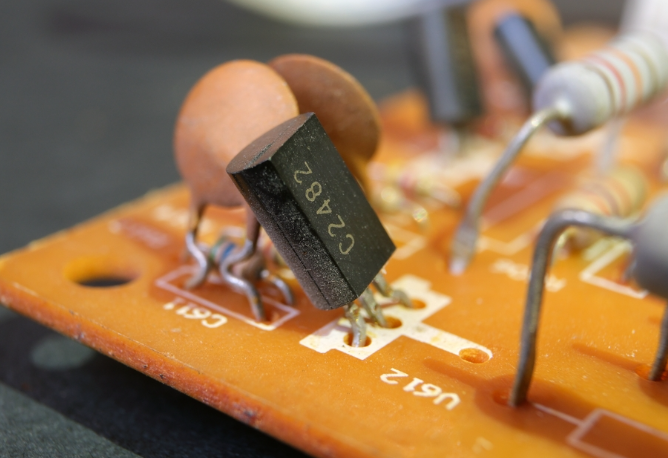

Transistor Selection and Inverter Design: Key Considerations for Power Engineers

Inverter design and power conversion systems depend heavily on selecting the correct semiconductor switches. Whether designing low-voltage DC-DC converters, high-frequency offline switch-mode power supplies (SMPS), or grid-tied solar inverters, choosing between MOSFETs and IGBTs directly impacts efficiency, thermal management, and physical footprint.

Evaluating core component categories like power management applications alongside comprehensive design methodologies in a inverter design guide provides a clear framework for topology and switch selection.

MOSFET vs. IGBT: Selection Framework

Selecting the optimal active switch requires balancing system voltage, switching frequency (fsw), and conduction versus switching losses.

                   Selecting the Right Switch Topology

                           System Voltage & Power

                                     │

         ┌───────────────────────────┴───────────────────────────┐

         ▼                                                       ▼

   V_DC < 600V                                             V_DC ≥ 600V

   High Frequency (>100kHz)                                Low-to-Mid Frequency (2kHz–30kHz)

         │                                                       │

         ▼                                                       ▼

   Power MOSFETs                                               IGBTs

   • Majority carrier device                                   • Minority carrier injection

   • Low RDS(on) at lower voltages                             • Low VCE(sat) under high current

   • Fast turn-off (No tail current)                           • High power density

Key Differences & Trade-offs

Parameter	Power MOSFET	IGBT
Conduction Behavior	Resistive (I2RDS(on))	Diode-like offset voltage (VCE(sat)IC)
Voltage Rating	Ideal for <600V	Ideal for 600V–1200V+
Switching Speed	Very fast (>100kHz)	Moderate (2kHz–30kHz)
Turn-off Tail Current	None	Yes (Minority carrier recombination delay)
Temperature Coefficient	Positive (Easy paralleling)	Neutral/Slightly Negative to Positive (FS Trench)

Power Loss Analysis in Inverter Topologies

Total power loss in an inverter stage determines heatsink sizing and conversion efficiency. Operating losses consist of two primary mechanisms:

1. Conduction Losses (Pcond)

Conduction loss occurs while the switch is fully turned ON and carrying load current:

• MOSFET: Pcond=IRMS2RDS(on)(Tj)
  • Note: RDS(on) increases significantly at elevated junction temperatures (Tj), requiring thermal derating.
• IGBT: Pcond=IavgVCE0+IRMS2rCE
  • Note: VCE(sat) remains relatively flat under high current density, making IGBTs more efficient at high power levels.

2. Switching Losses (Psw)

Switching loss occurs during the turn-on (Eon) and turn-off (Eoff) transition intervals:

Psw=(Eon+Eoff)fsw

• Turn-on Energy (Eon): Heavily influenced by the reverse recovery (Qrr) of the opposing anti-parallel diode.
• Turn-off Energy (Eoff): In IGBTs, turn-off energy is dominated by the tail current—the residual decay of stored minority carriers after the gate channel closes.

Solar Inverter Topology Considerations

Modern Photovoltaic (PV) inverters rely on specific multi-stage topologies to maximize Maximum Power Point Tracking (MPPT) efficiency and grid power quality.

┌─────────────────┐      ┌──────────────────┐      ┌─────────────────┐

│ PV Array Input  │ ───► │ DC-DC Boost Stage│ ───► │ DC-AC Inverter  │ ───► Grid / Load

│  (DC Voltage)   │      │  (MPPT Control)  │      │   (H-Bridge)    │

└─────────────────┘      └──────────────────┘      └─────────────────┘

1. DC-DC Boost Converter (MPPT Stage):
   • Boosts fluctuating panel string voltage up to a stable high-voltage DC bus (>380V–600V).
   • High-speed Superjunction MOSFETs or SiC Schottky Diodes are favored here to operate at high frequencies (50kHz–100kHz), reducing inductor size.
2. DC-AC Inversion Stage (H-Bridge / NPC Topologies):
   • Converts the DC bus voltage into clean sinusoidal AC power.
   • Neutral Point Clamped (3-Level NPC) topologies using IGBTs minimize switching harmonics, lower dv/dt stress on output filters, and increase efficiency in commercial and utility-scale solar installations.

See also: Emerging Trends in Business Workflow Management

Thermal and Gate Drive Guidelines

To ensure stable operation and prevent premature semiconductor failure:

• Symmetrical Gate Drive Loops: Keep gate-emitter/gate-source PCB loop areas minimal to prevent parasitic inductance (LG) from triggering high dv/dt false turn-ons or excessive gate ringing.
• Anti-Parallel Diode Matching: Pair IGBTs with Ultra-Fast or Silicon Carbide (SiC) co-packaged diodes. Fast diode recovery minimizes IRM spike amplitudes, lowering Eon losses in the primary switch.
• Thermal Margins: Size thermal interface materials (TIM) and heatsinks to keep peak junction temperatures below $125^\circ\text{C}\text{–}150^\circ\text{C}$ under worst-case ambient conditions.
